Understanding Payment Transaction Processing and Types

A customer enters their card details, clicks Pay, and sees “Payment successful” a few seconds later. To the customer, the transaction is finished.

Behind that screen, however, several systems have already communicated with one another: the payment gateway, processor, acquiring bank, card network, issuing bank, authentication layer, and fraud systems. The issuer has decided whether to approve the transaction, and the merchant still has to move through clearing, settlement, and reconciliation before the money is fully accounted for.

That entire sequence is payment transaction processing.

For businesses, understanding the process matters because a payment can fail at more than one point. A checkout can lose the customer before authentication, an issuer can decline the authorisation, a processor can time out, or a transaction can be approved but later create a settlement or reconciliation exception.

This guide explains how payment transaction processing works, the main stages and participants, different types of payment transactions, and where businesses can improve payment success.

What is payment transaction processing?

Payment transaction processing is the set of systems and steps used to move a payment from the customer’s payment instruction to the merchant’s eventual settlement and accounting records.

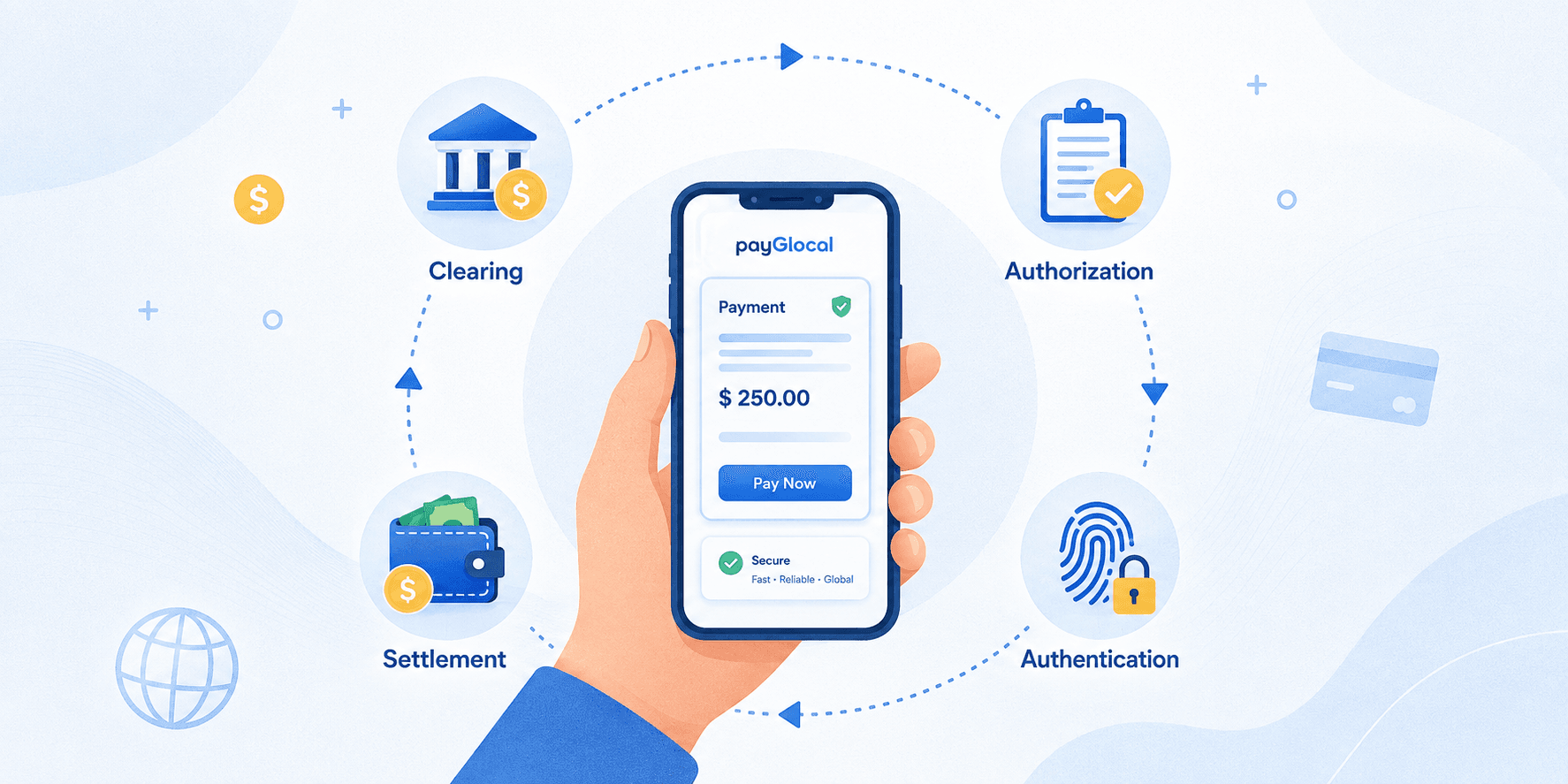

For a card payment, that typically includes:

1. payment initiation
2. payment-data transmission
3. fraud checks and authentication where applicable
4. authorisation
5. confirmation to the customer and merchant
6. clearing
7. settlement
8. reconciliation

The exact flow depends on the payment method.

A card transaction does not move through the same infrastructure as a UPI transfer, ACH payment, or wallet payment. But they all need to answer broadly similar questions: who is paying, whether the transaction is valid, whether the payment should be accepted, where funds should move, and how the final transaction should be recorded.

How does payment transaction processing work?

Consider an Indian online store receiving a card payment from a customer in the UK.

The customer enters their card details and clicks Pay.

Step 1: The customer initiates the payment

The customer selects a payment method and provides the information required to complete the transaction.

For an online card payment, that might include:

• card number or token
• expiry date
• card verification information where required
• billing information
• authentication details

For a wallet, UPI, or bank-based payment method, the information and approval flow will be different.

Step 2: The gateway securely passes the payment information

The payment gateway connects the merchant's checkout to the payment-processing infrastructure.

Its role can include securely transmitting transaction information, applying payment rules, invoking authentication, connecting to processors or acquirers, and returning the transaction result to the merchant.

Sensitive card information should be protected throughout this process using the appropriate security controls.

Step 3: Fraud checks and authentication take place

Before or alongside authorisation, the transaction may pass through fraud-risk checks.

For eligible online card payments, authentication can also involve 3-D Secure (3DS), where the cardholder's identity or transaction risk is evaluated using the issuer and card-network authentication infrastructure.

Authentication answers a question such as:

Is this really the cardholder, or does the transaction present enough trusted signals to proceed?

A low-risk transaction may complete with little visible friction, while a higher-risk transaction might require an OTP, banking-app approval, biometric step, or another challenge depending on the issuer and market.

Step 4: The payment is sent for authorisation

The transaction then reaches the issuing bank through the relevant payment-processing route.

The issuer decides whether to approve or decline it based on factors such as:

• available funds or credit
• card status
• fraud and risk signals
• transaction limits
• merchant and geography
• authentication result
• issuer policies
• transaction history

If the issuer approves the transaction, it returns an authorisation response.

If not, the merchant receives a decline or failure response.

Step 5: The customer sees the result

The authorisation response travels back through the payment infrastructure to the checkout.

The customer may see:

• payment successful
• payment declined
• try another payment method
• additional authentication required
• payment pending

This entire authorisation experience can happen in seconds.

But the merchant has not necessarily received the final settled funds yet.

What is the difference between authentication and authorisation?

These two stages are often confused.

Authentication verifies the payer or assesses whether the transaction is genuinely being initiated by the legitimate cardholder. Authorisation is the issuing bank's decision to approve or decline the transaction.

A transaction can therefore successfully authenticate and still be declined during authorisation.

For example:

1. the customer completes an OTP challenge successfully
2. the issuer confirms the authentication
3. the payment proceeds to authorisation
4. the issuer declines it because the account has insufficient available funds

The reverse can also matter operationally: weak or failed authentication can prevent a transaction from reaching a successful authorisation outcome even where the customer has sufficient funds.

For international cards, the quality of the authentication flow can have a major effect on approval rates.

What happens after a payment is authorized?

Authorisation is only one stage in the payment lifecycle.

For card payments, the transaction generally moves into clearing and settlement afterward.

Clearing

During clearing, transaction information is exchanged and reconciled between the institutions involved in the card payment.

This confirms the financial details that will be used to calculate what each party owes or is owed.

Settlement

Settlement is the financial movement between the relevant participating institutions.

The merchant's actual payout timing can then depend on its acquirer, payment provider, settlement cycle, reserves, holidays, risk rules, and commercial agreement.

That is why:
“The payment was approved” and “the merchant has received the settlement” are not the same event.

Reconciliation

Once transactions and settlements are available, the merchant's finance system needs to match them.

For each transaction, a business may need to reconcile:

• order ID
• customer
• transaction amount
• payment method
• fees
• taxes where applicable
• refund or chargeback activity
• settlement amount
• settlement date
• currency conversion
• payment or bank reference

At low volume this can look like accounting housekeeping.

At thousands of transactions a day, poor reconciliation becomes a financial-control problem.

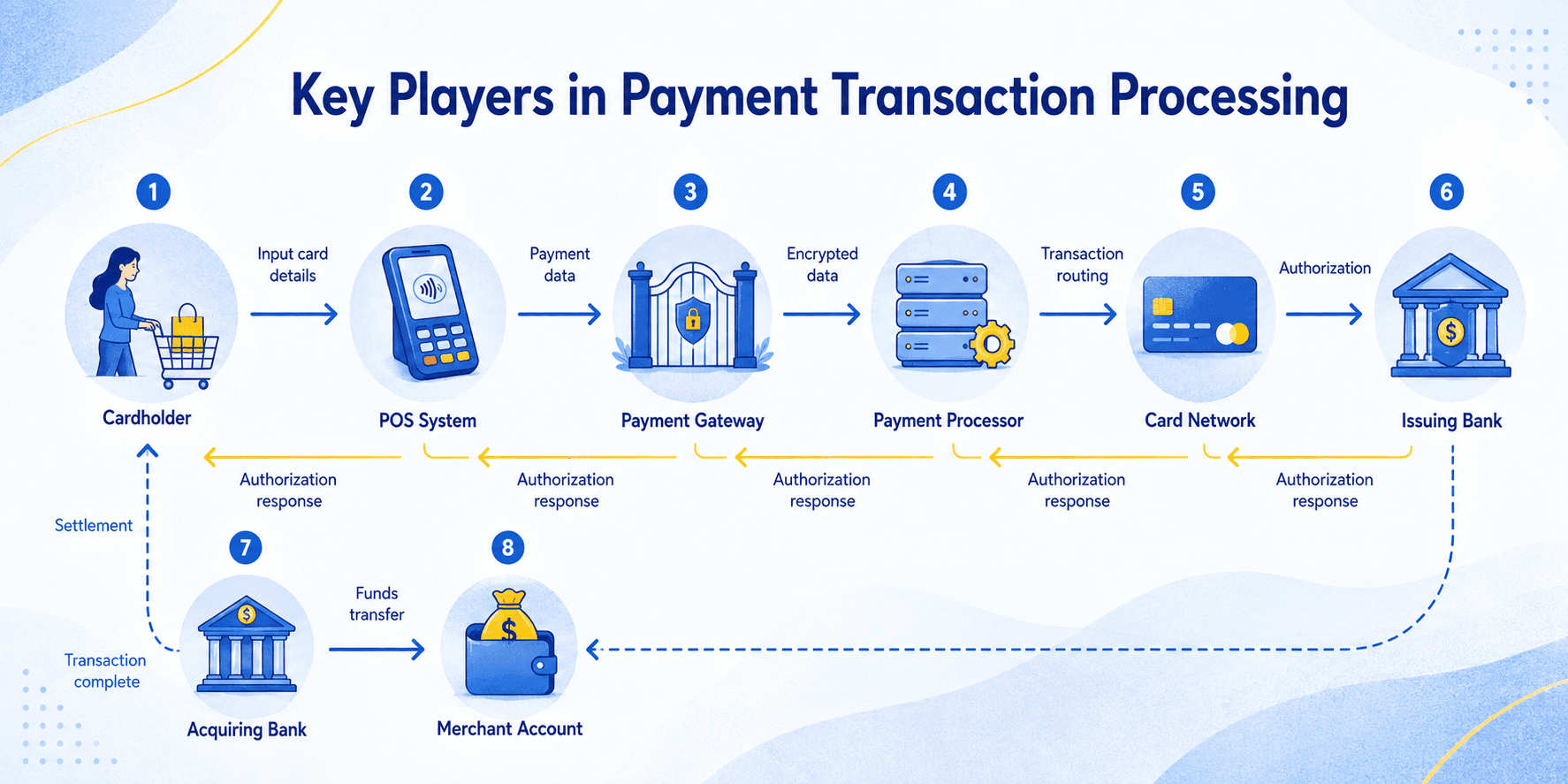

Who is involved in payment transaction processing?

The number of participants varies by payment method. For a typical card transaction, the key parties include:
The boundaries between gateway, processor, acquirer, and payment aggregator can vary depending on the market and provider architecture.

For merchants, the more useful question is often not “how many entities are involved?” but how well those entities work together to convert a valid payment into an approved and settled transaction.

Payment gateway vs payment processor: what is the difference?

A payment gateway is generally the merchant-facing technology that securely accepts and transmits payment information from the checkout.

A payment processor handles transaction processing and routing between the payment participants.

In modern payment products, the same provider may perform or coordinate several functions, so the distinction is not always obvious to the merchant.

A merchant might integrate one API or plugin while the provider handles gateway functionality, processing connections, acquiring relationships, fraud controls, routing, settlement, and reporting behind the scenes.

That is why provider selection should focus on the complete processing capability rather than the label alone.

What are the main payment methods and rails?

There are several ways to classify payment transactions.

The original payment method is one useful lens.

Card payments

Credit and debit card payments typically move through card-network infrastructure involving the merchant/acquirer side and the customer's issuing bank.

Card processing can include:

• authentication
• authorisation
• capture
• clearing
• settlement
• refunds
• reversals
• chargebacks

For online businesses, card-processing performance is heavily affected by issuer approval, authentication, fraud controls, routing, and checkout experience.

UPI and real-time account-to-account payments

UPI is an account-to-account payment system rather than a card network.

The customer authorizes a payment from a linked bank account through the UPI ecosystem, and the transaction is processed through the relevant participants in India's payment infrastructure.

For merchants serving domestic Indian customers, UPI and cards therefore require different processing integrations and operational handling.

Bank transfers

Bank transfers move money directly between bank accounts through the relevant banking or payment-system infrastructure.

The exact process depends on the rail used, such as NEFT, RTGS, IMPS, ACH, Faster Payments, SEPA, or another local system.

Some transfers are real time; others use deferred or batch-based processing.

Digital wallets

Wallets such as Apple Pay or Google Pay can provide a customer-facing payment experience while relying on underlying payment credentials and rails.

For example, a card stored in a digital wallet may still ultimately be authorized through the relevant card network and issuing bank.

This is why payment method and payment rail are not always the same thing.

ACH payments

ACH refers to Automated Clearing House payments, most notably in the United States.

These are bank-account payments processed through ACH infrastructure and are commonly used for payroll, bill payments, B2B transfers, and recurring debits.

Unlike card payments, ACH processing follows account-to-account clearing rules rather than card-network authorization.

What are authorization, capture, refund and chargeback transactions?

Payments can also be classified by what is being done to the transaction, not just by the original payment method.

Authorization

The merchant asks whether the payment can be approved.

In some card flows, authorization reserves or makes the amount unavailable to the cardholder without immediately completing capture.

Capture

Capture tells the payment system to proceed with collecting the authorized amount.

For many ordinary ecommerce transactions, authorization and capture happen very close together. Other businesses, such as hotels or marketplaces, may separate them.

Void or authorization reversal

If an authorized payment should not be captured, the merchant may void or reverse the authorization, depending on the payment setup and timing.

Refund

A refund sends money back after a payment has already been completed or captured.

It is merchant-initiated.

Chargeback

A chargeback is different from a refund.

It is a dispute process initiated through the cardholder's issuing side and card network. The merchant may need to respond with evidence depending on the dispute reason and network process.

Understanding these transaction types becomes important when designing reporting and reconciliation systems, because a single customer order may generate several transaction events over its lifecycle.

Why do payment transactions fail?

A declined payment is not one single type of failure.

The transaction can break at different points.

Checkout failure

The customer never completes the payment because the checkout is slow, confusing, redirects unexpectedly, or does not offer the payment method they prefer.

Authentication failure

The customer cannot complete the required authentication, an OTP does not arrive, the authentication flow times out, or the issuer rejects the authentication attempt.

Authorization decline

The issuer receives the payment request but declines it.

Reasons can include:

• insufficient funds
• issuer fraud rules
• transaction limits
• card restrictions
• suspected unusual activity
• incorrect card details
• expired or replaced credentials

Some declines are legitimate.

Others are false declines, where a valid customer is rejected because the transaction appears risky.

Processor or acquirer failure

A payment may fail because a processor, gateway, acquirer, or bank route is experiencing latency, downtime, or elevated errors.

Routing mismatch

Not every acquiring route performs equally well for every issuer, BIN, currency, or country.

Sending all transactions through one fixed path can therefore produce avoidable declines.

Settlement or reconciliation exception

The customer may have paid successfully, but the merchant can still face a later operational problem if the transaction cannot be matched cleanly to a settlement, order, or accounting record.

Why are international payments harder to process?

A domestic card payment already involves several institutions.

A cross-border card payment adds additional variables:

• foreign-issued cards
• different issuer risk models
• different authentication behaviour
• international acquiring
• currency conversion
• cross-border fraud signals
• local payment preferences
• correspondent or settlement considerations
• regulatory requirements

Consider an Indian merchant processing the same ₹10,000-equivalent sale from two customers.

One customer uses an Indian card.

The other uses a US-issued card while shopping from New York.

The product and merchant are identical, but the second transaction can pass through a very different issuer risk model, authentication expectation, currency context, and acquiring route.

That is why a payment gateway built mainly for domestic cards can perform very differently when international volume grows.

What is payment routing?

Payment routing is the logic that determines which processor or acquiring path should handle a transaction.

In a simple setup, every card transaction may use one fixed route.

A more sophisticated processing system can choose between multiple routes based on signals such as:

• Issuer
• Card BIN
• Country
• Currency
• Payment method

-Historical approval performance

• Current acquirer health
• Latency
• Transaction risk

This is often called dynamic routing or payment orchestration.

If Acquirer A is experiencing an outage, or historically performs poorly for cards from a particular issuer, the transaction can be sent to a more suitable route instead.

The goal is not simply to move the transaction.

It is to choose the route with the best probability of legitimate approval.

What is Payment Success Rate?

Payment Success Rate (PSR) is the percentage of attempted payments that complete successfully.

If 10,000 customers attempt to pay and 9,000 payments succeed:

PSR = 90%

For an online business, this is one of the most commercially important payment metrics.

A gateway charging a slightly lower transaction fee can still be more expensive overall if its processing setup causes more legitimate payments to fail.

For example:
A ten-percentage-point gap in success rate means 1,000 additional successful orders before even considering repeat business or customer acquisition cost.

This is why merchants should evaluate payment processing on both cost and approval performance.

Which payment processing metrics should businesses track?

A useful payments dashboard should go beyond total transaction value.

Payment Success Rate

How many attempted transactions successfully complete?

Authorization rate

Of the payments sent for authorization, how many are approved by the issuer?

Authentication success rate

How many transactions successfully complete the authentication stage where authentication is required?

Decline rate by issuer, BIN, country and payment method

Are failures concentrated in a specific bank, geography, card range, or route?

Gateway and processor latency

How long does each part of the payment flow take?

Higher latency can create timeouts and customer abandonment.

Settlement accuracy

Do expected settlements match the amount, fees, and timing actually received?

Reconciliation exceptions

How many transactions require finance teams to investigate manually?

Looking at these metrics together makes it easier to identify whether a problem is happening at checkout, authentication, authorization, infrastructure, or after the payment succeeds.

How is payment data kept secure during processing?

Payment processing involves highly sensitive financial information.

Security therefore operates across multiple layers.

Encryption

Sensitive data is encrypted while it is transmitted between systems.

Tokenisation

Tokenisation replaces sensitive payment credentials with tokens that can be used in place of the original card data in supported payment flows.

This reduces the need for merchants and payment systems to repeatedly expose raw payment credentials.

PCI DSS

The Payment Card Industry Data Security Standard, or PCI DSS, defines security requirements for protecting payment-account data across the card-payment ecosystem.

Authentication and fraud controls

Security mechanisms can also include:

• 3DS
• risk scoring
• behavioural signals
• velocity checks
• device information
• issuer and network fraud controls

The challenge is balance.

A fraud system that approves everything creates losses. A fraud system that treats every unfamiliar customer as suspicious creates false declines and lost revenue.

Good payment processing tries to stop fraudulent transactions without unnecessarily blocking genuine customers.

How can businesses improve payment transaction processing?

For merchants, payment optimisation usually comes down to reducing friction and improving the quality of the infrastructure behind every transaction.

Offer the payment methods customers actually use

Supporting more methods is useful only if they are relevant to the customer's geography and context.

Reduce checkout friction

Avoid unnecessary redirects, repetitive form fields, confusing errors, and slow payment pages.

Improve authentication

Authentication should satisfy issuer requirements without forcing unnecessary friction onto low-risk customers.

Use multiple acquiring routes

A multi-acquirer setup reduces dependence on one processing path.

Route transactions intelligently

Issuer, BIN, currency, geography, and live acquirer performance can all affect approval probability.

Use tokenisation

Tokenised card credentials can improve security and support smoother repeat-payment experiences.

Separate soft and hard declines

Some declined payments may succeed through an appropriate retry or alternate route.

Others require the customer to change payment credentials or resolve an issuer-side issue.

Treating every decline identically wastes recovery opportunities.

Make reconciliation part of the processing design

A payment system is not finished when the checkout says “successful.”

Merchants also need clear records of fees, settlement, refunds, chargebacks, currency conversion, and transaction history.

How PayGlocal approaches international payment processing

For Indian businesses selling globally, international card processing is where infrastructure decisions have an especially visible effect on revenue.

PayGlocal is an RBI-authorised cross-border payment aggregator built for international collections by Indian businesses.

Its processing stack combines capabilities such as:

• multi-acquirer infrastructure
• intelligent payment routing
• issuer and BIN-level optimisation
• real-time gateway health monitoring
• automated failover and smart retries
• network tokenisation
• authentication optimisation
• fraud pre-screening
• localised international checkout

PayGlocal currently reports Payment Success Rate of up to 96% on international card transactions, although actual approval performance varies by merchant, issuer mix, geography, payment method, and transaction profile.

The point is not that every transaction can be made successful.

It is that payment success is not a fixed outcome. The architecture that handles the transaction affects how many genuine customers actually get approved.
